DM-BDB1102
DMCRAFT

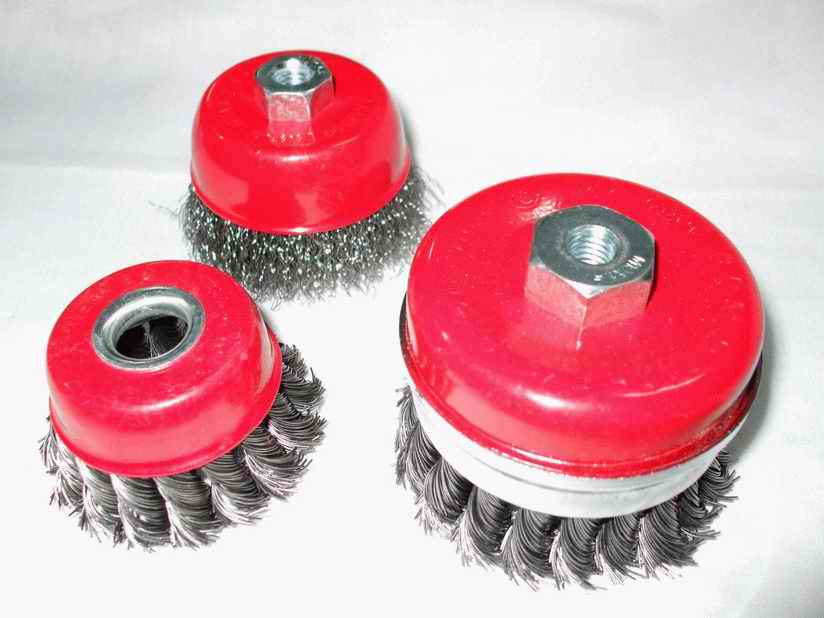

Wire cup brushes are intended primarily for use on portable power tools for addressing larger surface areas more efficiently than a wheel brush. Cup brushes featuring a threaded nut are designed for smooth, efficient operation on angle grinders to make quick work of large jobs. Utility cup brushes featuring a permanently attached 1/4" stem are more suitable for smaller jobs and are recommended for use on high-speed air tools for the most effective brushing action and longest life.
Cup brushes are available in a variety of knot wire and crimped wire configurations for use in a broad range of surface cleaning applications, and they are manufactured with individual knot hole and solid ring construction for high performance and long life. SEB's cup brushes are available in heat-treated steel, stainless steel, and bronze or brass wire.
*0.3mm diameter steel wire coated with copper for fine polishing.
| Diameter | Wire Height | Threaded Connecting | Max. Safety Speed | Item Number |
| 65mm | 20mm | M14x2 | 12500rpm. | PWW1011-65 |
| 75mm | 27mm | M14x2 | 12500rpm. | PWW1011-75 |
| 85mm | 27mm | M14x2 | 8500rpm. | PWW1011-85 |
| 100mm | 29mm | M14x2 | 8500rpm. | PWW1011-100 |
| 125mm | 33mm | M14x2 | 6500rpm. | PWW1011-125 |
| 150mm | 33mm | M14x2 | 4500rpm. | PWW1011-150 |
Advantage
--Larger nuts on opposite sides and heavier weight
--Uniform and firm wire distribution improves concentricity and balance
--Up to standard of dynamic balance, safety performance 1. 2 times
--The connection performances good
--Durable with long life time
Application area
Industrial brushes used in the surface- treatment of metal. Fast removal of paint, rust, scale, corrosion and other contamination on the metal surface, mainly aspects as below:
(1) Rough machining of surface(polish, pull rough, rust clearance)
(2) Clear of surface (dirt reduce, oil relieve)
(3) Finishing of surface(Mill, gloss marking ,polish)
