DM-AC10011
:DAMING
Diameter | T.C.T. QTY. | Item Number | Diameter | T.C.T. QTY. | Item Number |
19mm | 3 | HSC1017-19 | 65mm | 5 | HSC1017-65 |
20mm | 3 | HSC1017-20 | 67mm | 5 | HSC1017-67 |
22mm | 3 | HSC1017-22 | 70mm | 5 | HSC1017-70 |
25mm | 3 | HSC1017-25 | 73mm | 5 | HSC1017-73 |
29mm | 3 | HSC1017-29 | 76mm | 5 | HSC1017-76 |
32mm | 3 | HSC1017-32 | 79mm | 5 | HSC1017-79 |
35mm | 3 | HSC1017-35 | 83mm | 5 | HSC1017-83 |
38mm | 3 | HSC1017-38 | 89mm | 5 | HSC1017-89 |
41mm | 3 | HSC1017-41 | 92mm | 5 | HSC1017-92 |
44mm | 3 | HSC1017-44 | 95mm | 6 | HSC1017-95 |
48mm | 3 | HSC1017-48 | 102mm | 6 | HSC1017-102 |
51mm | 3 | HSC1017-51 | 108mm | 6 | HSC1017-108 |
54mm | 3 | HSC1017-54 | 114mm | 6 | HSC1017-114 |
57mm | 5 | HSC1017-57 | 127mm | 8 | HSC1017-127 |
60mm | 5 | HSC1017-60 | 140mm | 8 | HSC1017-140 |
64mm | 5 | HSC1017-64 | 152mm | 8 | HSC1017-152 |
*Application Area:
a)Installation of electrical switch boxes and junction boxes
b)Fitting of spot and down lights.
c)Through holes for cable, water and central heating pipes.
d)Openings for ventilation and extractor pipework.
*Applicable materials:
1)Bricks-suitable for both solid bricks and bricks with cavities.
2)Aerated concrete blocks, lightweight aggregate blocks and breeze blocks
3)Soft density lime-sandstone building blocks up to hardness of 30N/mm2
4)Softwoods, chipboard, plywood, medium density fibreboard(MDF)
5)Plastic and plastic coated board(Contiboard)
6)Gypsum/plaster board

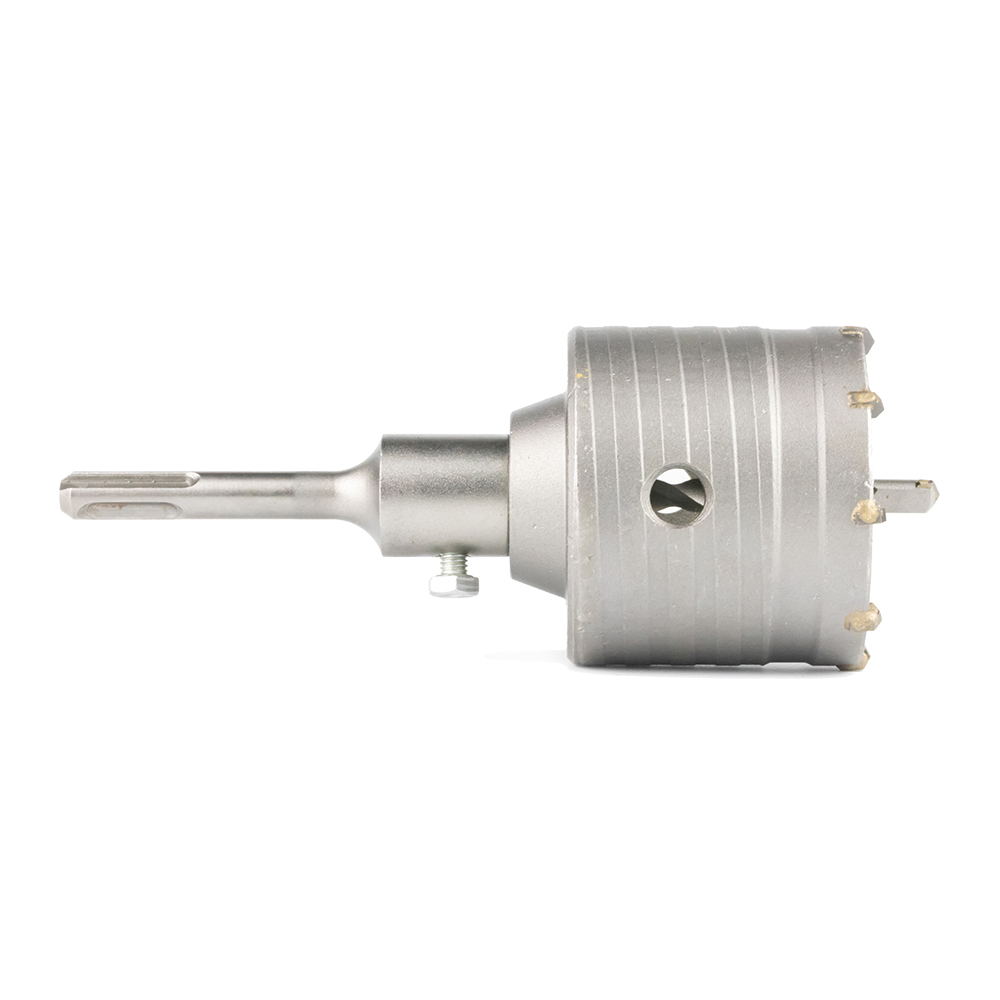

*All TCT Universal Hole Cutters have a 5/8-18UNF threaded connecting and fit to both SDS-plus and Hex reception arbors.
*Max. cutting depth 60mm.
