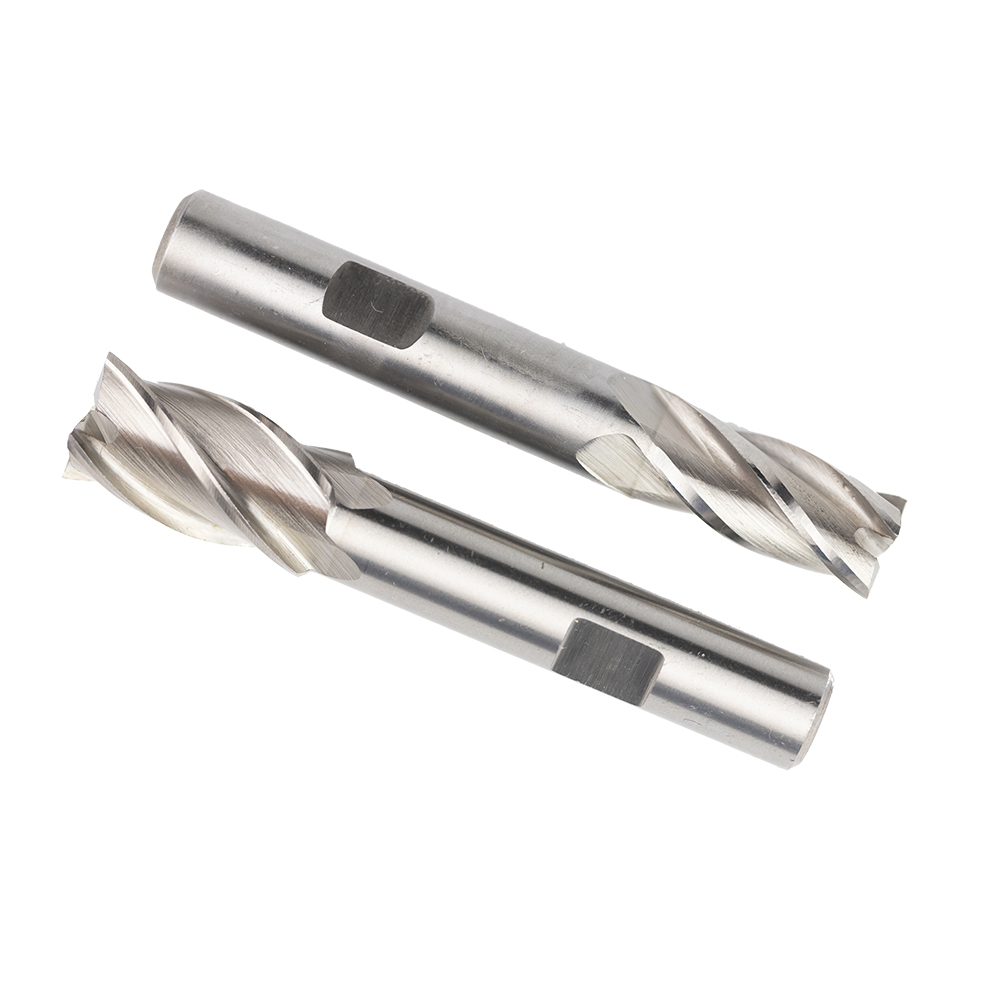

| Procuct Name | DIN844 4 Flutes HSS End Mill for Metal Stainless Steel Aluminium Milling |
| Material | HSS (Solid Carbide is Available) |
| Process | Milled |
| Flute Type | 4 Flutes (2 Flutes, 6 Flutes, Single Flute are Available) |
| Size | 2mm - 40mm |
| Surface Finish | Bright Finish (AlTiN, TiAIN, TiN are Available) |
| Package | One Piece in One Plastic Calm Shell |
| Features | 1.Suitable for milling lateral face, end face, flute and step face. Also for two vertical planes and form plane. To passing core end edgeend mill, also used for drilling and insertion milling. In structural steels with resistance 1200 N/mm². 2.Having an excellent self-centering capability, can processing H7 workpiece efficiently. 3.Processed holes can achieve high position and have a good straightness and surface finish. 4.For materials with short chips such as cast iron, silicon-aluminum alloy, etc 5.Designed for a general performance to carbon steel ,tool steel, alloy steel and stainless steel |
| Specification | Flute Dia(φ) | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
| Φ1x3Cx4x50L | 1.0 | 3 | 4 | 50 |
| Φ2x6Cx4x50L | 2.0 | 6 | 4 | 50 |
| Φ3x8Cx4x50L | 3.0 | 8 | 4 | 50 |
| Φ4x10Cx4x50L | 4.0 | 10 | 4 | 50 |
| Φ5x13Cx6x50L | 5.0 | 13 | 6 | 50 |
| Φ6x15Cx6x50L | 6.0 | 15 | 6 | 50 |
| Φ8x20Cx8x60L | 8.0 | 20 | 8 | 60 |
| Φ6x20Cx6x75L | 6.0 | 20 | 6 | 75 |
| Φ8x25Cx8x75L | 8.0 | 25 | 8 | 75 |
| Φ10x25Cx10x75L | 10.0 | 25 | 10 | 75 |
| Φ12x30Cx12x75L | 12.0 | 30 | 12 | 75 |
| Φ10x40Cx10x100L | 10.0 | 40 | 10 | 100 |
| Φ12x45Cx12x100L | 12.0 | 45 | 12 | 100 |
| Φ14x40Cx14x100L | 14.0 | 40 | 14 | 100 |
| Φ16x40Cx16x100L | 16.0 | 40 | 16 | 100 |
| Φ18x40Cx18x100L | 18.0 | 40 | 18 | 100 |
| Φ20x45Cx20x100L | 20.0 | 45 | 20 | 100 |
